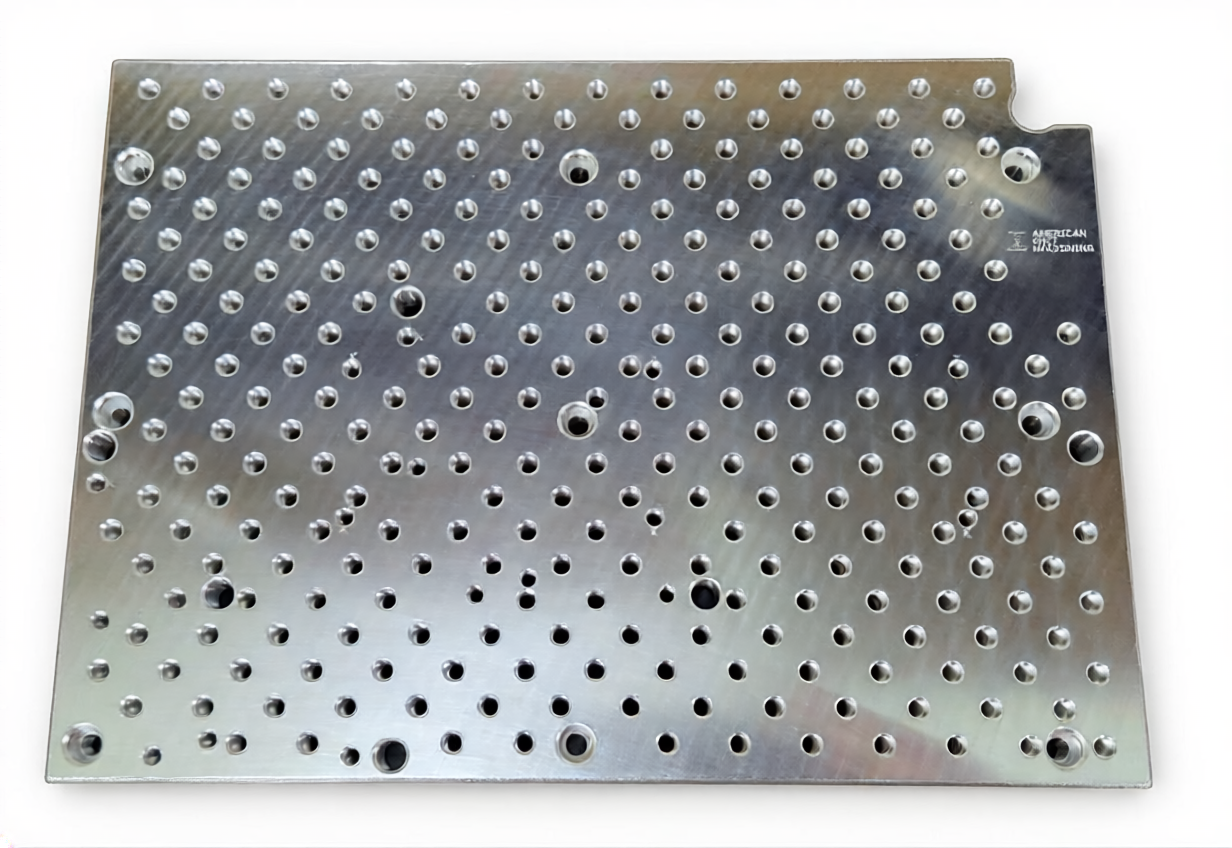

Carvera Air Fixture Tooling Plate Kit

Upgrade your Carvera Air workholding setup with a precision-machined fixture plate made from ATP-5 cast aluminum tooling plate. Designed for customizable setups and compatibility with Makera accessories, this plate features an M6 threaded hole pattern, 20mm on center, while retaining the factory M5 mounting locations for the 4th axis and L-bracket accessories.

ATP-5 cast aluminum offers excellent flatness, dimensional stability, and corrosion resistance, making it well suited for desktop CNC workholding applications.

Features

• Made from ATP-5 cast aluminum tooling plate
• M6 threaded holes | 20mm on center
• Retains threaded M5 holes for Makera 4th axis and L-bracket compatibility
• Precision-machined flat .005" or better.
• Superior dimensional stability
• Corrosion resistant
• Designed for the Carvera Air CNC platform
• Made in the USA

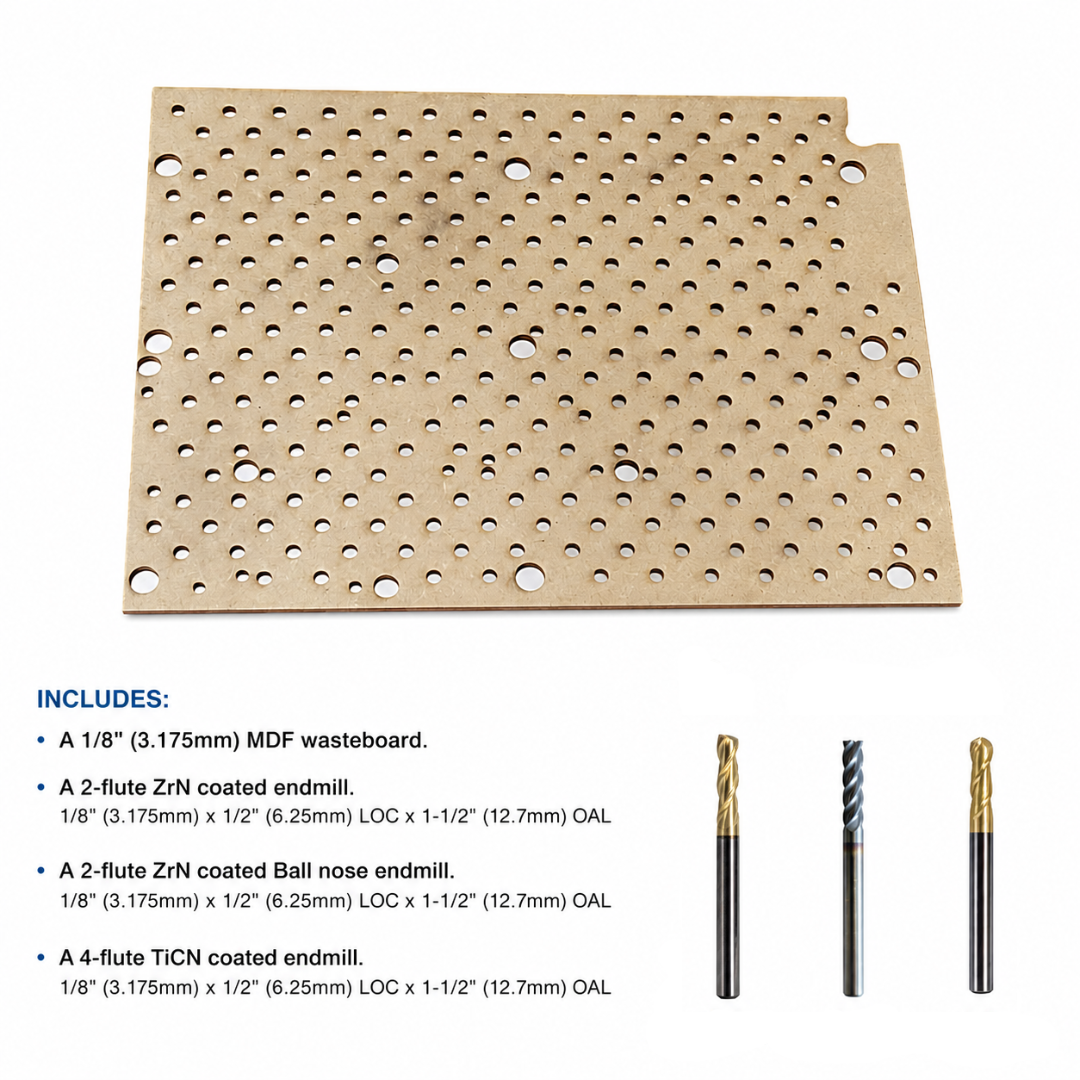

Included with Purchase

• 1/8" (3.175mm) MDF wasteboard
• 2-flute ZrN coated carbide endmill
• 2-flute ZrN coated ball nose carbide endmill
• 4-flute TiCN coated carbide endmill

Endmills are 1/8" (3.175mm) x 1/2" (6.25mm) LOC x 1-1/2" (12.7mm) OAL

Product Dimensions

• 306mm x 222mm x 15.875mm
• Weight: 5lbs 9oz

Fixture plates are made to order with a 2 -3 week lead time.
